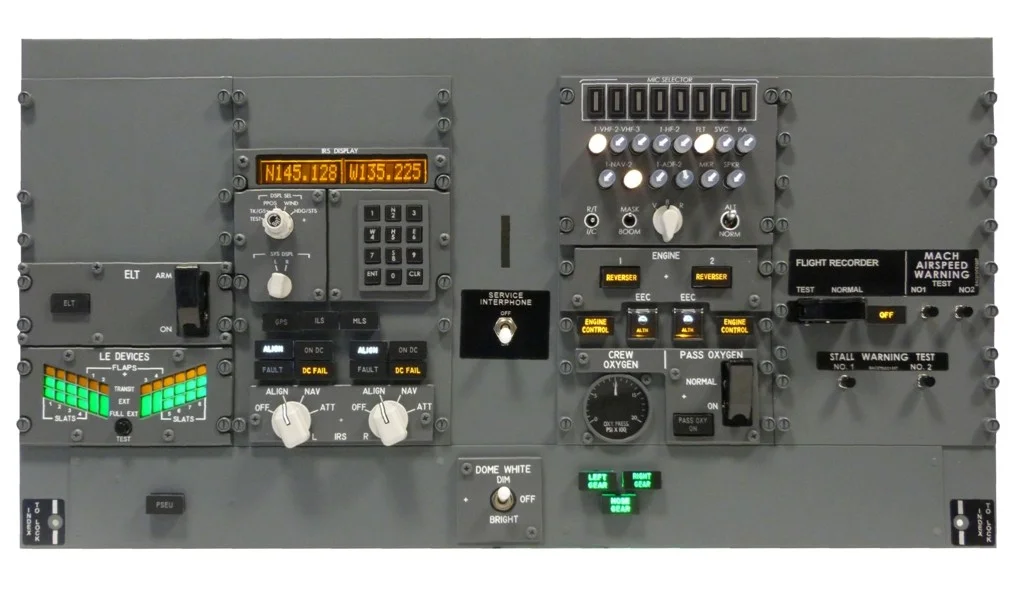

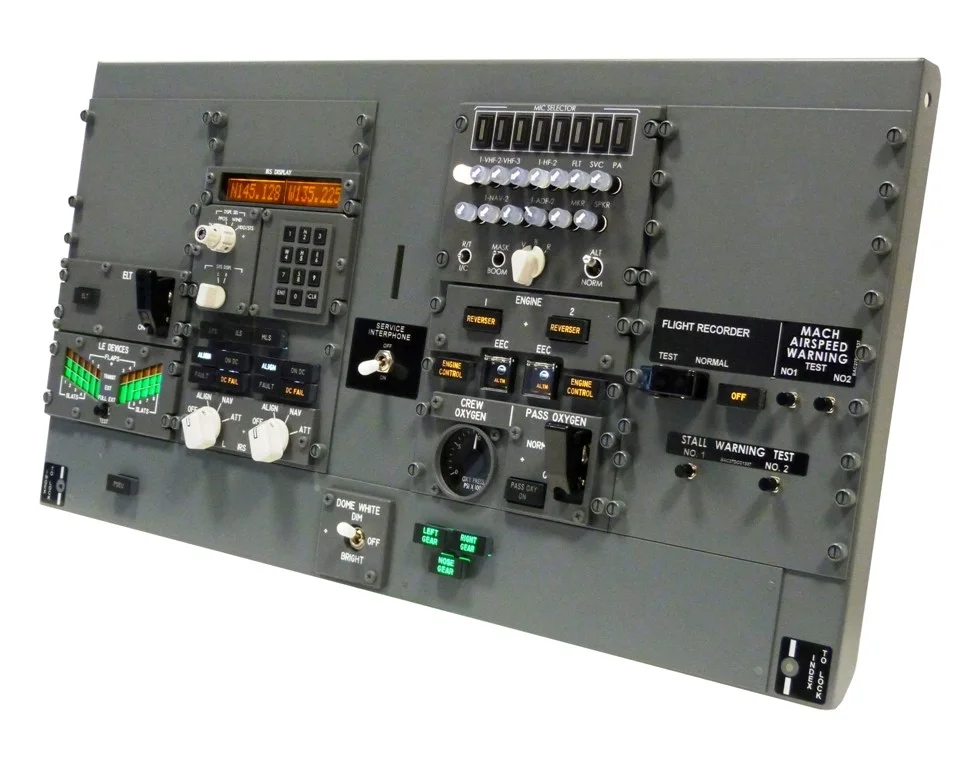

– Custom high resolution warm white backlighting frontplate.
– The only overhead hardware with annunciators pushbutton test
– ELT, PSEU, GPS, ILS, MLS, ALIGN(2), FAULT(2), ON DC (2), DC FAIL (2), ENGINE CONTROL (2), REVERSER (2), PASS OXY ON, OFF, LEFT GEAR, RIGHT GEAR, NOSE GEAR annunciators
– Guarded EEC pushbutton
– OXY PRESS Backlighted Gauge
– IRS graphic display with brightness regulation
– Painted 1/4 Turn Original Fastners ( 16 pieces provided )
– ACP with volume regulation active on all channels
– PULL & Rotate functionality to set OFF position on IRS selectors
– Bipolar DOME WHITE switch to separately drive any other device ( LAMP ecc…. )
– Provided with a 4-pole cable for daisy chain interface with the main module ( B737 ELECTRICAL PANEL )
– Compatible with Prosim737 V3, Project Magenta, PMDG737NGX, PMDG737NGX series and iFly737
– Logics, operating modes and aircraft way of behaving are managed by the used software ( PROSIM737, Project Magenta, PMDG or iFly).

B737NG AFTER OVERHEAD is intended for daisy chain connection. Does not require further driver installations, software configurations or any additional power supply.

B737NG AFTER OVERHEAD PANEL is an expansion module and require B737 ELECTRICAL PANEL (see FWD overhead) to operate so don’t use other computer’s input. The ELECTRICAL PANEL performs the function of “central unit” for all the other modules that make the overhead.

B737NG AFTER OVERHEAD PANEL is exclusively compatible with the B737NG FORWARD OVERHEAD PANEL (Ethernet version)
